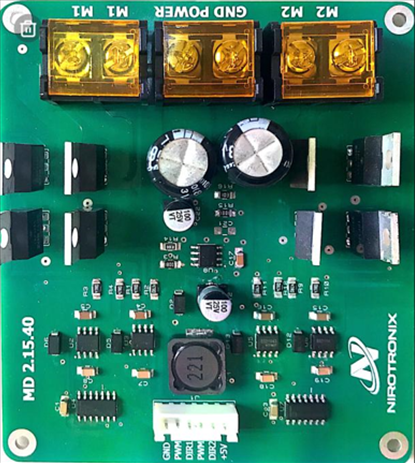

MD 2.15.40 — Dual Channel 15A DC Motor Driver

920.00 EGP

Dual-channel brushed DC motor driver: 15 A continuous per channel at up to 40 V, sign-magnitude PWM up to 25 kHz.

SKU: MD-2.15.40 Category: Motor Drivers

Description

Dual-channel brushed DC motor driver: 15 A continuous per channel at up to 40 V, sign-magnitude PWM up to 25 kHz.

Two internal regulators power the whole board from the motor supply, so no separate logic rail is needed. The output switching frequency follows the input PWM signal directly.

Part numbering

MD · channels · max continuous current · max voltage · optional suffix (T = test functionality, S = smart).

Additional information

Channels	2 (dual)
Max continuous current	15 A continuous per channel
Motor voltage	3.5 V – 40 V
Max PWM frequency	25 kHz
Dimensions	102 mm × 90 mm
