Designed & supported in Egypt

DC motor drivers you can actually trust

Brushed DC motor drivers for robotics, automation and vehicle projects — 15 A to 30 A continuous at up to 40 V, driven straight from your microcontroller's PWM on 3.3 V or 5 V logic. No guesswork: every board ships with a full datasheet.

Shop motor drivers Compare the boards

30 Acontinuous, per channel
40 Vmaximum motor supply
25 kHzPWM, silent drive

The motor-driver line-up

One family, four boards. Same control interface, same wiring — pick the one that matches your motor.

MD-1.15.40

MD 1.15.40 — Single Channel 15A DC Motor Driver

1 (single)
15 A continuous, 37 A peak
3.5 V – 40 V

Original price was: 785.00 EGP.Current price is: 580.00 EGP.

View board

MD-1.30.40

MD 1.30.40 — Single Channel 30A DC Motor Driver

1 (single)
30 A continuous
3.5 V – 40 V

Original price was: 1,445.00 EGP.Current price is: 1,070.00 EGP.

View board

MD-2.15.40

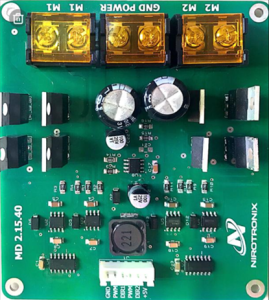

MD 2.15.40 — Dual Channel 15A DC Motor Driver

2 (dual)
15 A continuous per channel
3.5 V – 40 V

Original price was: 1,240.00 EGP.Current price is: 920.00 EGP.

View board

MD-2.15.40T

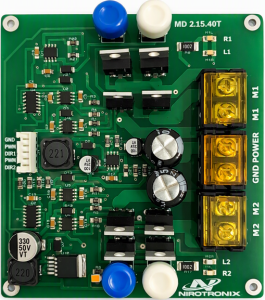

MD 2.15.40T — Dual Channel 15A DC Motor Driver with Onboard Test

2 (dual)
15 A continuous per channel, 37 A peak
7 V – 40 V

Original price was: 1,485.00 EGP.Current price is: 1,100.00 EGP.

View board

Built for the bench and the field

The details that decide whether a driver survives its first real load.

One supply, nothing else

Two on-board regulators run the whole driver from the motor supply — 3.5 V to 40 V — so there is no separate logic rail to wire or forget.

Straight off your MCU

Sign-magnitude PWM up to 25 kHz on plain PWM and DIR pins. The output switches at the frequency you feed it — above hearing, if you want silence.

Headroom where it counts

Rated for continuous current, not a peak you can only hit once: 15 A or 30 A all day, with peaks up to 37 A per channel.

Documented, not guessed

Every board has a datasheet on its product page: pinout, absolute maximum ratings, PWM modes and wiring examples.

Shipped from Egypt

Local stock and EGP pricing — no customs paperwork, no month-long wait for a board that may not arrive.

Talk to the people who built it

Support comes from the engineers who designed the board, so questions about your motor get an answer, not a script.

Which board do I need?

Match your motor's stall current and supply voltage, then count your channels.

Specification	MD-1.15.40	MD-1.30.40	MD-2.15.40	MD-2.15.40T
Channels	1 (single)	1 (single)	2 (dual)	2 (dual)
Continuous current	15 A continuous, 37 A peak	30 A continuous	15 A continuous per channel	15 A continuous per channel, 37 A peak
Motor voltage	3.5 V – 40 V	3.5 V – 40 V	3.5 V – 40 V	7 V – 40 V
Max PWM frequency	25 kHz	25 kHz	25 kHz	25 kHz
Board size	105 mm × 58 mm	156 mm × 91 mm	102 mm × 90 mm	120 mm × 108 mm
Price	Original price was: 785.00 EGP.Current price is: 580.00 EGP.	Original price was: 1,445.00 EGP.Current price is: 1,070.00 EGP.	Original price was: 1,240.00 EGP.Current price is: 920.00 EGP.	Original price was: 1,485.00 EGP.Current price is: 1,100.00 EGP.
Buy	Details MD 1.15.40 — Single Channel 15A DC Motor Driver	Details MD 1.30.40 — Single Channel 30A DC Motor Driver	Details MD 2.15.40 — Dual Channel 15A DC Motor Driver	Details MD 2.15.40T — Dual Channel 15A DC Motor Driver with Onboard Test

Where these boards end up

Competition & hobby robots
Autonomous rovers and AGVs
Conveyors & factory automation
Electric karts and mobility builds
Winches, linear actuators, pumps
Graduation and research projects

Not sure which driver fits your motor?

Tell us the motor, the supply voltage and the load, and we will point you at the right board — before you buy it.

Ask an engineer Browse the shop
